Disease surveillance

New and more detailed map of antimicrobial resistance

There are large geographical differences in both how frequently resistant genes occur and in which types of bacteria the genes are found. This is shown by analyses of sewage from throughout the globe, thus underlining the importance of combating antimicrobial resistance based on data on local conditions.

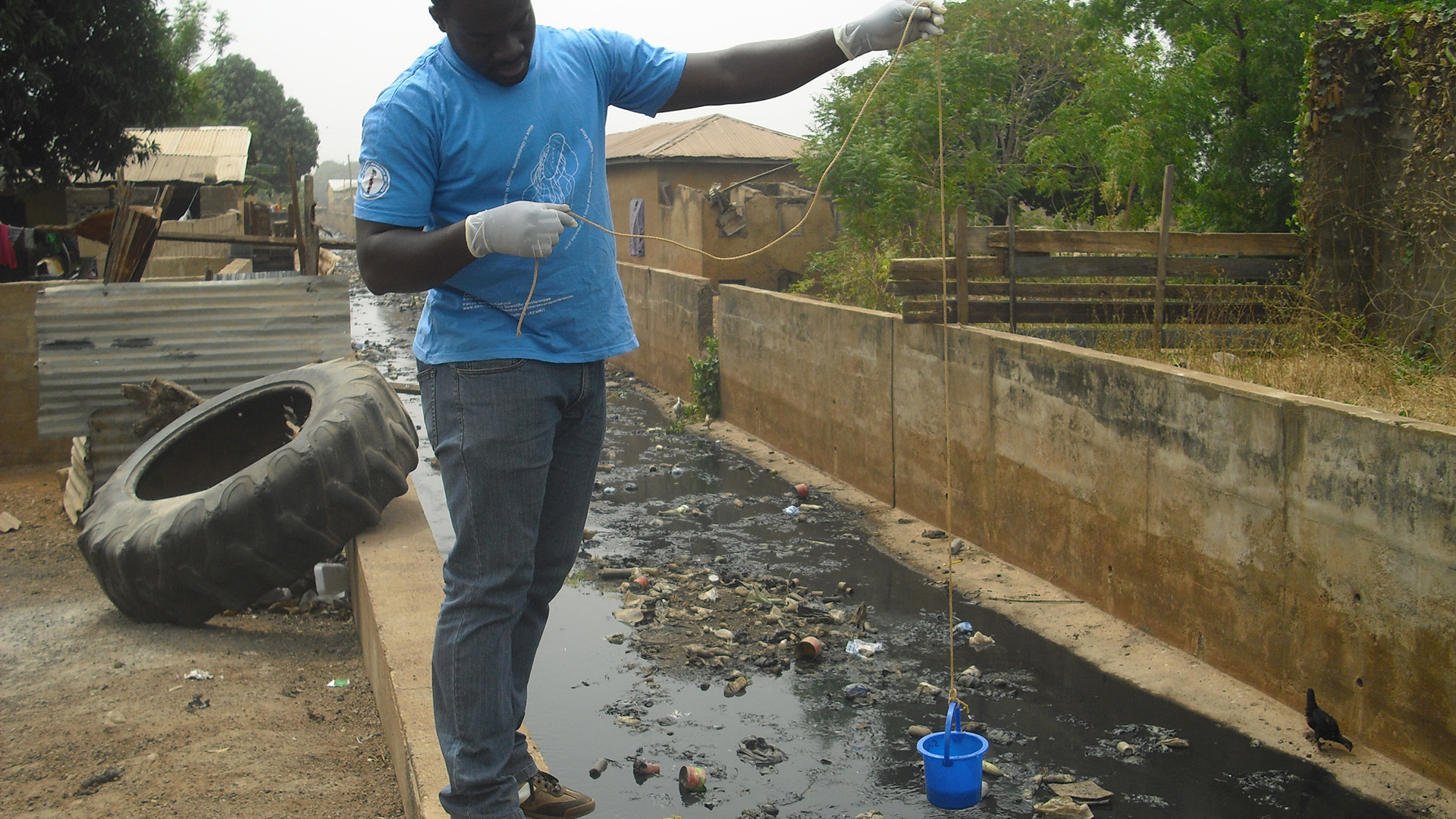

Collection of sewage sample in Tamale, Ghana - one of 101 countries to have taken part in a global surveillance of infectious diseases and antimicrobial resistance via sewage. Photo: Courage Kosi Setsoafia Saba

About the method

The Research Group for Genomic Epidemiology at DTU National Food Institute has developed and maintains one of the world’s most comprehensive resistance databases. It currently includes 3,134 known resistance genes.

The researchers have used the database to map resistance genes in the sewage samples in the new study.

The samples contain a very large number of microorganisms from different sources, including human faeces. The frozen sewage samples have been sent to DTU, where laboratory technicians extract all the bacteria from the thawed samples.

The bacteria are then broken up and their collective DNA is broken into smaller pieces, which state-of-the-art DNA sequencing equipment can read all at once.

A supercomputer can then compare the billions of recorded DNA sequences with known genes and construct larger pieces of the original genomes contained in the samples.

This process provides insight into several areas such as in which bacteria and genetic neighbourhoods the resistance genes are located.

Hotspots for transmission of genes

In different places in Sub-Saharan Africa, the researchers have found the same resistance gene in a number of different bacteria.

“We interpret this to mean that we may be quite close to a transmission hotspot, where there is a gene transmission from one to another to a third bacterium. That’s why we’re seeing the gene in so many different contexts precisely there,” Patrick Munk explains.

He adds that many of the surprising transmissions appear to occur in the Sub-Saharan Africa. These are also countries with the least developed programmes for monitoring resistance, which means that there is very little data on the resistance situation.

“We risk overlooking important trends because we don’t have data,” he suggests, stressing that solid data is exactly what is needed to develop effective strategies for combating resistance:

“Right now, we have huge knowledge about how resistance behaves in the West and—based on that knowledge—we plan how to combat resistance. It now turns out that if we look at some new locations, the resistance genes may behave very differently—presumably because they have more favourable transmission conditions. Therefore, the way in which you combat resistance must also be adjusted and tailored to the local conditions.”

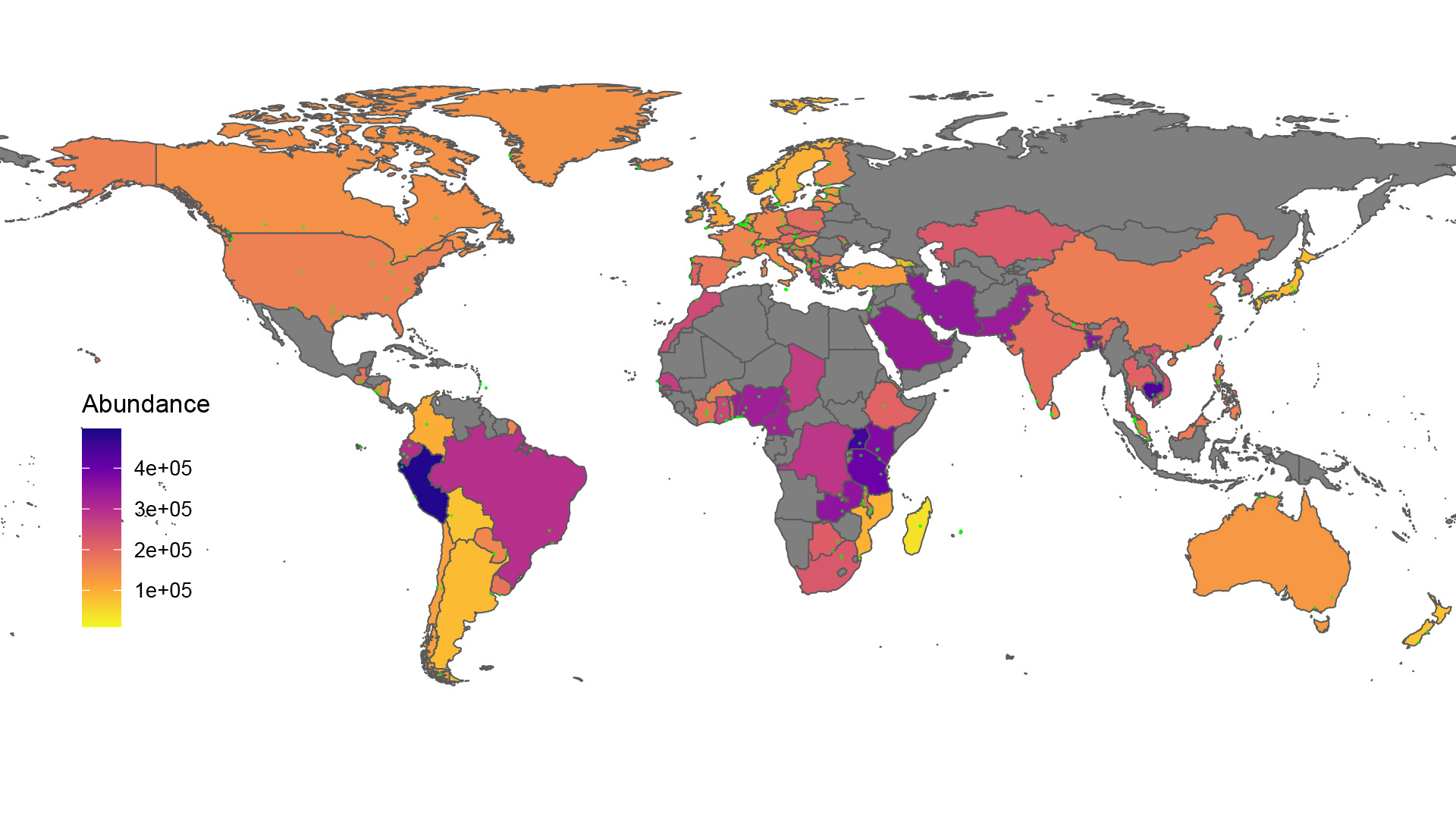

The world map shows the occurrence of resistance genes in different countries. The darker a colour used for a country, the higher the frequency of resistance genes in bacteria. Grey countries have not provided sewage samples


The global sewage project—which is supported by the Novo Nordisk Foundation and the VEO research project—concludes in 2023. The researchers find that it has proved to be a good supplement to existing monitoring initiatives, which mainly operate at national or regional level and measure resistance in bacteria from sick people.

They therefore hope that a successor to the project will appear, so that the world can continue to benefit from the important knowledge generated by the monitoring programme. This also applies to countries that have solid monitoring programmes and control strategies in place.

“There are many analogies with climate change, where what happens on the other side of the globe isn’t unimportant to you. One day or another, the problem will come back to bite us, as we’ve seen time and again,” Patrick Munk stresses.

Data sharing

Unlike data from conventional analysis methods, raw data from metagenomic studies can be reused to shed light on other problems. For example, the researchers in the sewage project have used their dataset to analyse the occurrence of other pathogenic microorganisms in the sewage.

The whole dataset from the sewage monitoring has been made freely available to researchers worldwide. For example, it has already been used to detect many new viruses globally and to map the ethnic composition of different populations.

As new resistance genes are discovered—even far into the future—researchers will be able to reuse raw data to quickly establish where they have first appeared and how they have spread.


In the study, the researchers have analysed 757 sewage samples from 243 cities in 101 countries. The samples were collected and sent to DTU’s campus in Lyngby between 2016 and 2019.

Genomic analysis of wastewater is fast and fairly inexpensive relative to how many people you can cover. Wastewater analyses do not require ethical approval, as the sample material cannot be linked to individuals.

Read more about the results of the study in an article in Nature Communications: Genomic analysis of sewage from 101 countries reveals global landscape of antimicrobial resistance.
The work was carried out with funding from the Novo Nordisk Foundation and the VEO research project.
